Pinout Diagram

Siemens MS 4x (BMW)

siemens ECU Pin Configuration

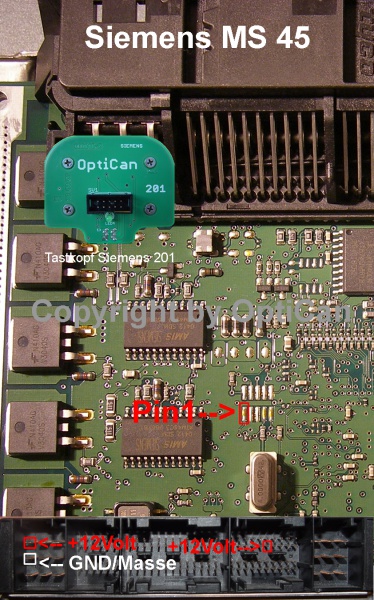

Siemens MS 4x (BMW) pinout diagram 1
1 of 11

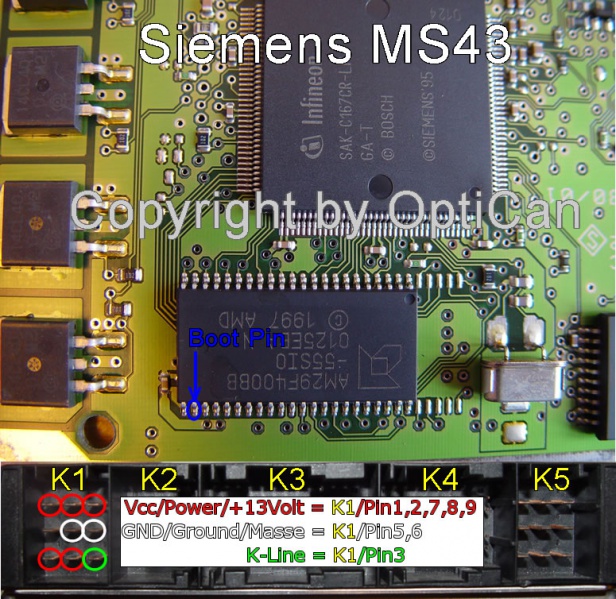

Siemens MS 4x (BMW) pinout diagram 2
2 of 11
Siemens MS 4x (BMW) pinout diagram 3
3 of 11

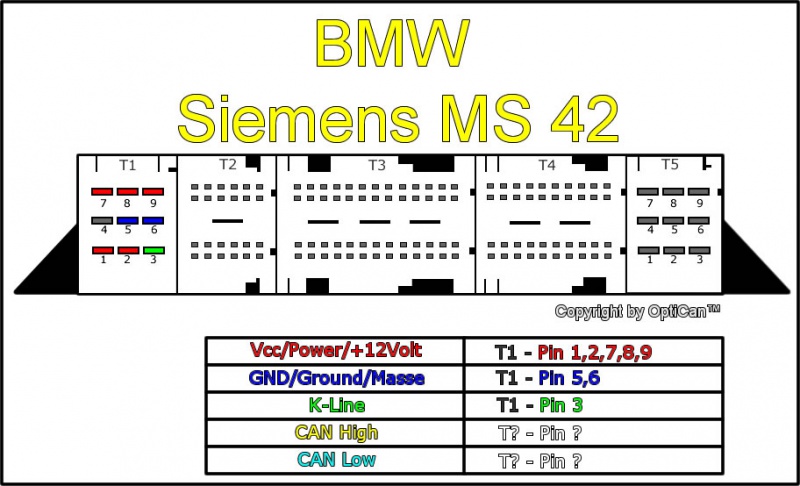

Siemens MS 4x (BMW) pinout diagram 4
4 of 11

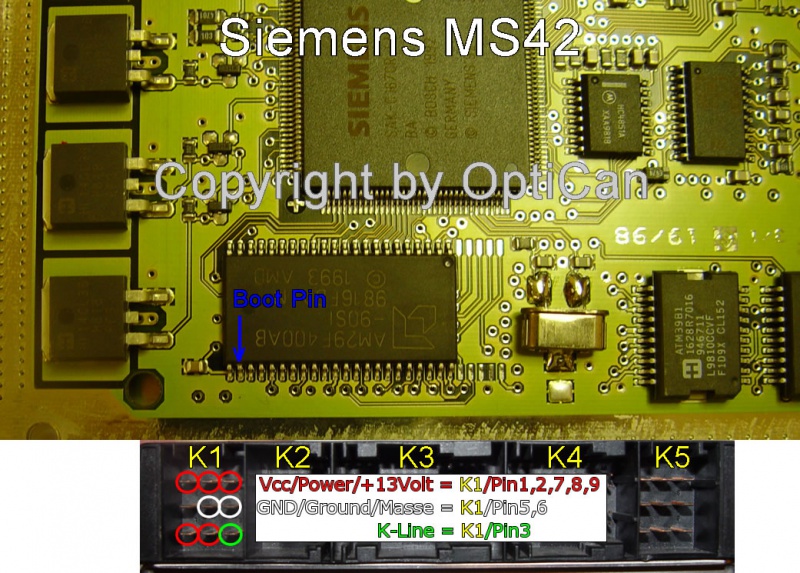

Siemens MS 4x (BMW) pinout diagram 5
5 of 11
Siemens MS 4x (BMW) pinout diagram 6
6 of 11

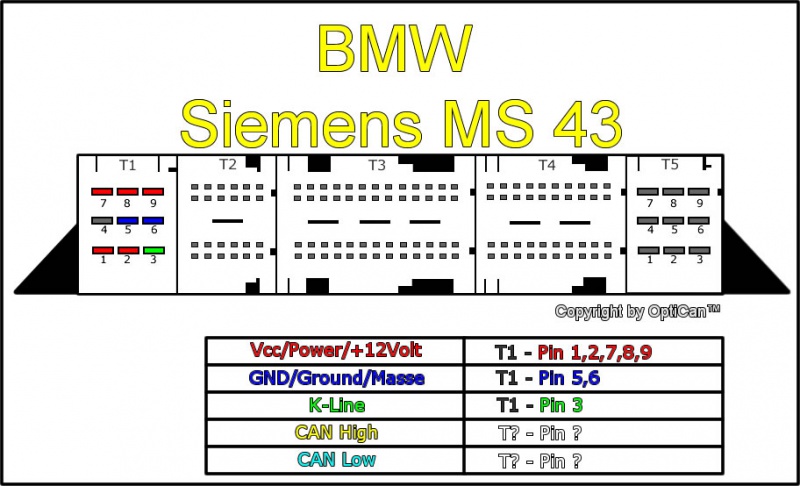

Siemens MS 4x (BMW) pinout diagram 7
7 of 11
Siemens MS 4x (BMW) pinout diagram 8
8 of 11

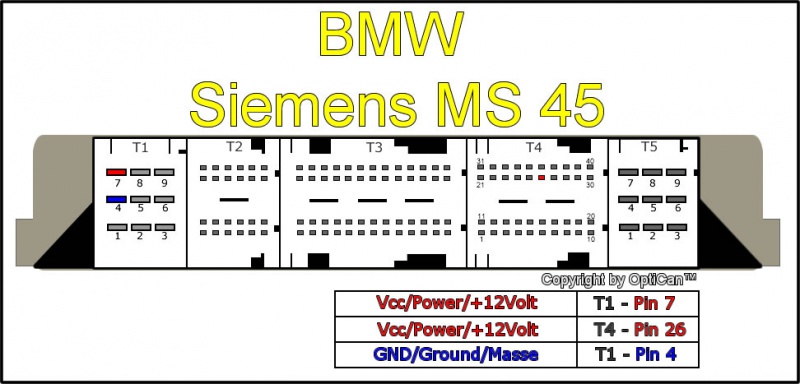

Siemens MS 4x (BMW) pinout diagram 9
9 of 11
Siemens MS 4x (BMW) pinout diagram 10
10 of 11

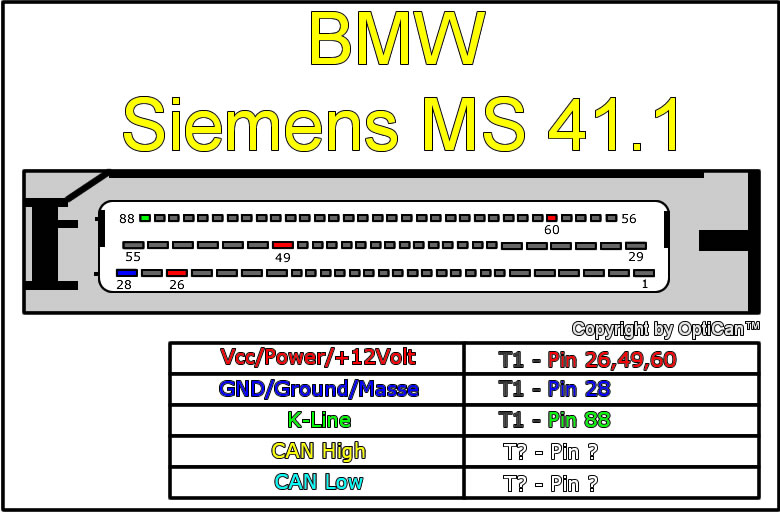

Siemens MS 4x (BMW) pinout diagram 11
11 of 11
