Pinout Diagram

Siemens MS 4x

BMW ECU Pin Configuration

Siemens MS 4x pinout diagram 1
1 of 13

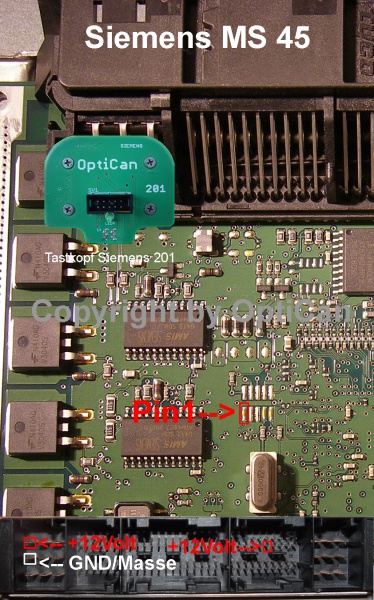

Siemens MS 4x pinout diagram 2
2 of 13

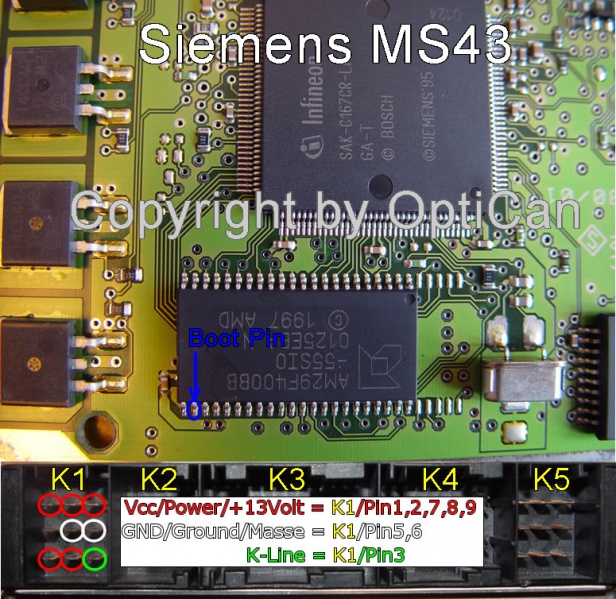

Siemens MS 4x pinout diagram 3
3 of 13
Siemens MS 4x pinout diagram 4
4 of 13

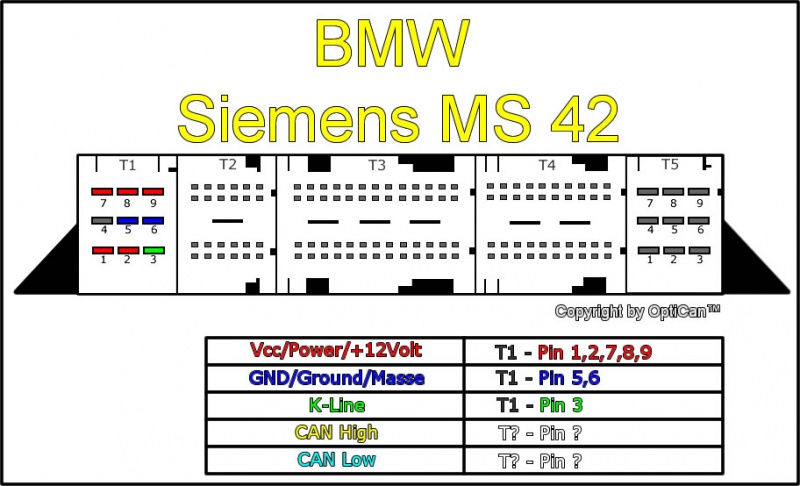

Siemens MS 4x pinout diagram 5
5 of 13

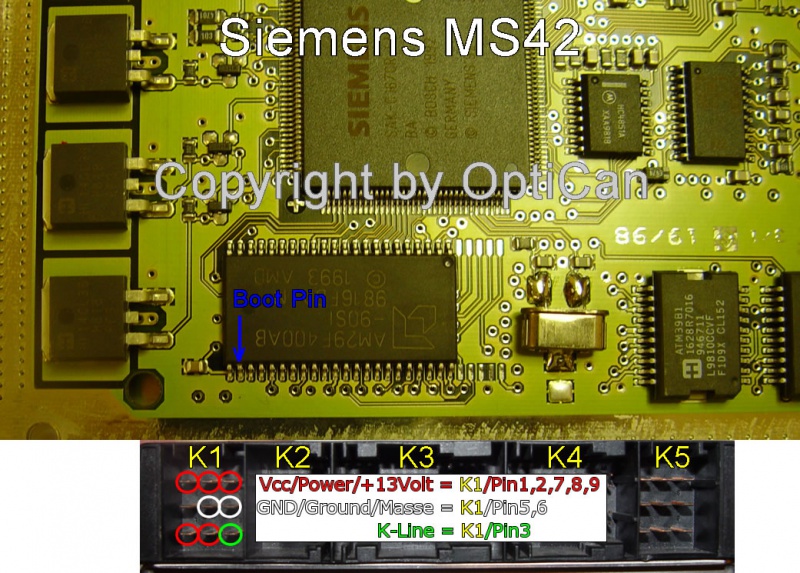

Siemens MS 4x pinout diagram 6
6 of 13
Siemens MS 4x pinout diagram 7
7 of 13

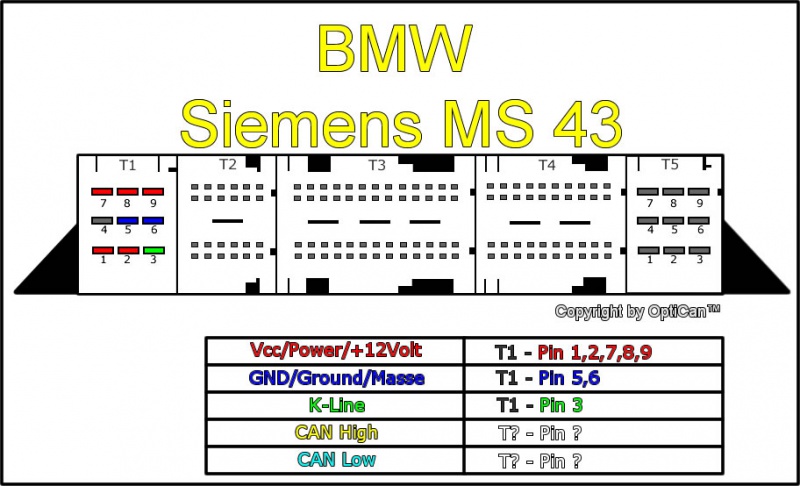

Siemens MS 4x pinout diagram 8
8 of 13
Siemens MS 4x pinout diagram 9
9 of 13
Siemens MS 4x pinout diagram 10
10 of 13

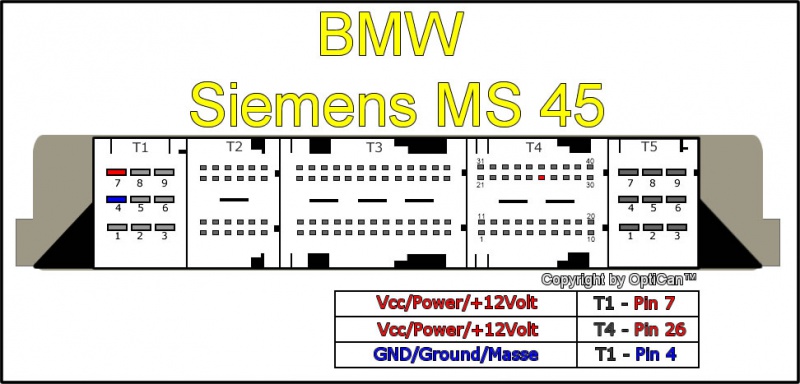

Siemens MS 4x pinout diagram 11
11 of 13

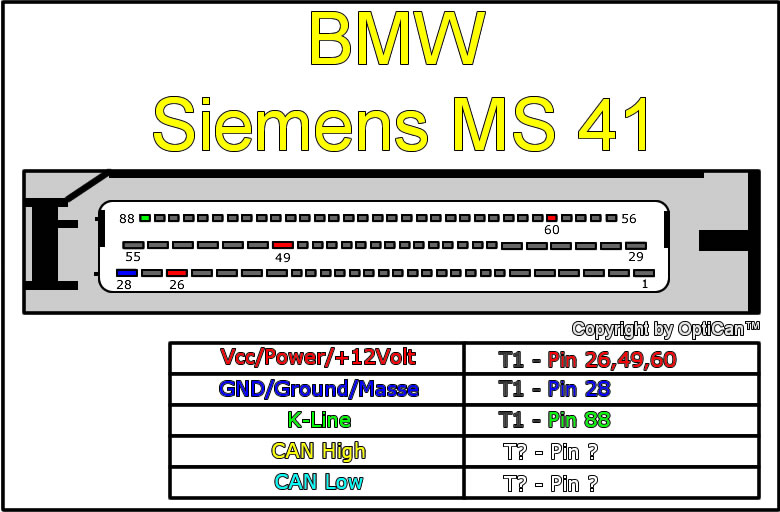

Siemens MS 4x pinout diagram 12
12 of 13
Siemens MS 4x pinout diagram 13
13 of 13
