Pinout Diagram

Diagnosebuchse 38Pin (Iveco Daily)

IVECO DAILY ECU Pin Configuration

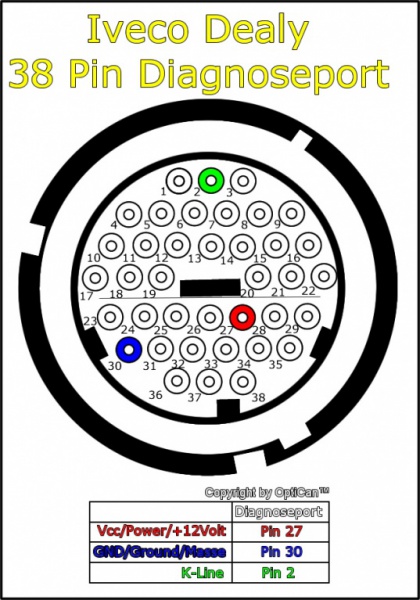

Diagnosebuchse 38Pin (Iveco Daily) pinout diagram 1
1 of 5
Diagnosebuchse 38Pin (Iveco Daily) pinout diagram 2
2 of 5
Diagnosebuchse 38Pin (Iveco Daily) pinout diagram 3
3 of 5

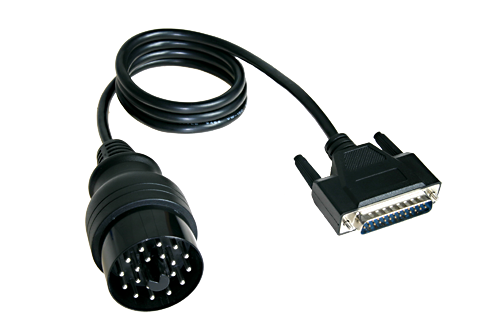

Diagnosebuchse 38Pin (Iveco Daily) pinout diagram 4
4 of 5

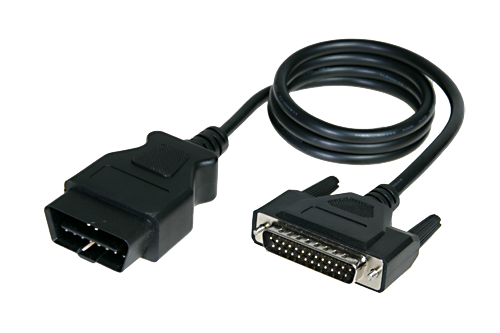

Diagnosebuchse 38Pin (Iveco Daily) pinout diagram 5
5 of 5
