Pinout Diagram

Delphi DDCR CR-U (Hyundai)

delphi ECU Pin Configuration

Delphi DDCR CR-U (Hyundai) pinout diagram 1
1 of 4

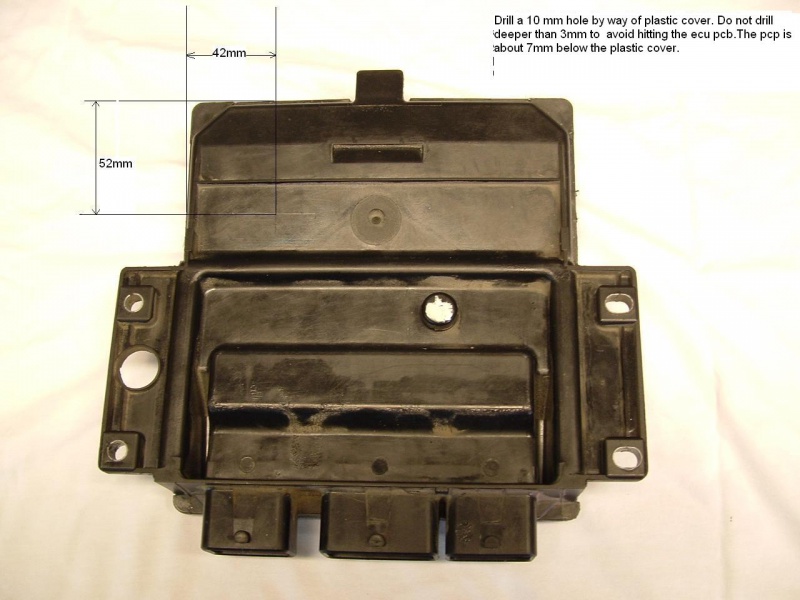

Delphi DDCR CR-U (Hyundai) pinout diagram 2
2 of 4

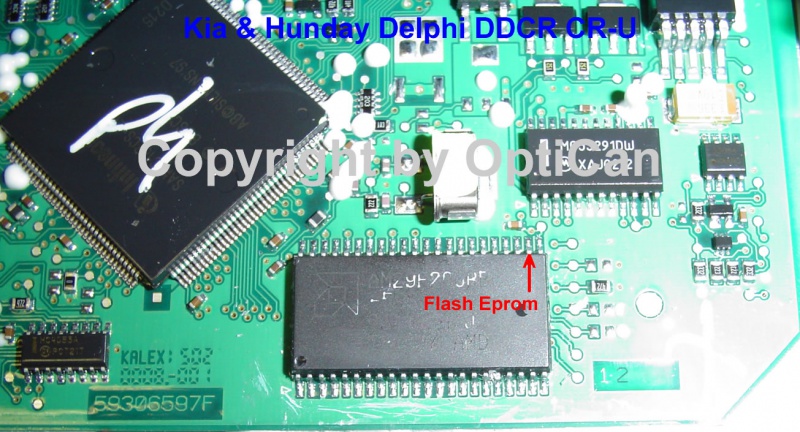

Delphi DDCR CR-U (Hyundai) pinout diagram 3
3 of 4

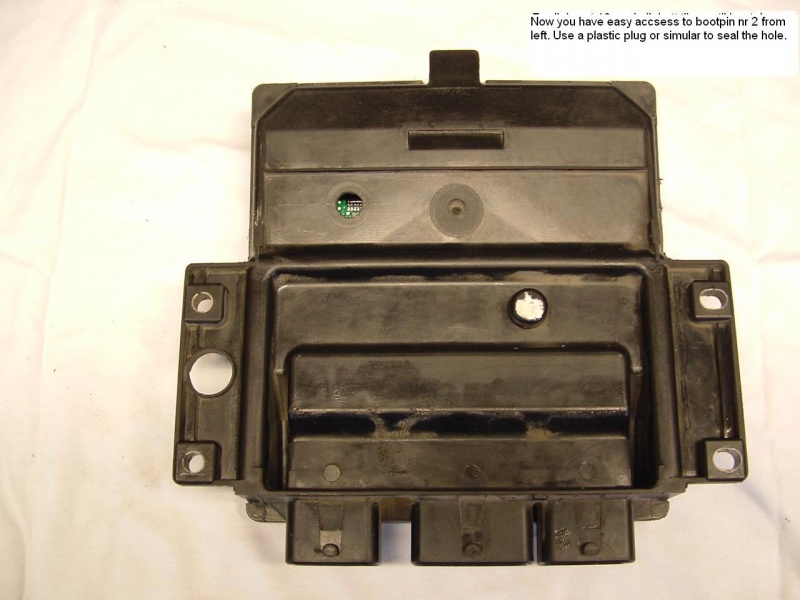

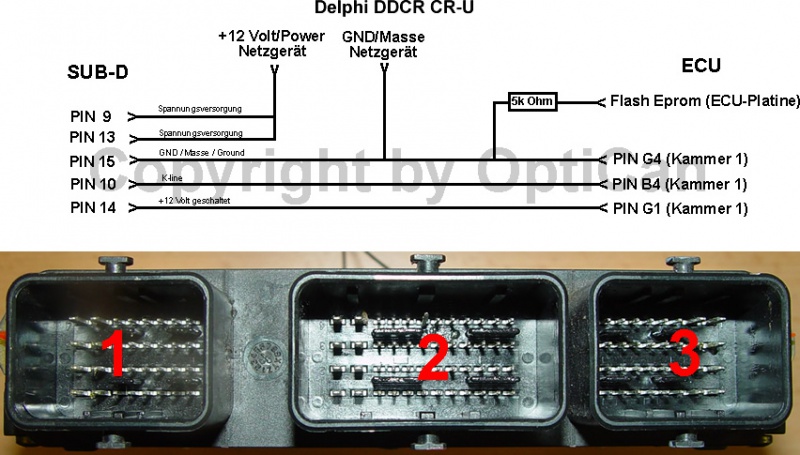

Delphi DDCR CR-U (Hyundai) pinout diagram 4
4 of 4
