Pinout Diagram

Delphi 50.05 (Mercedes Benz)

delphi ECU Pin Configuration

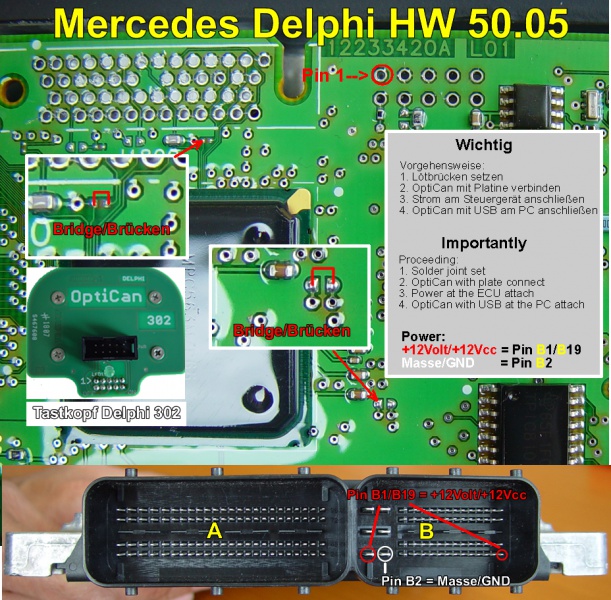

Delphi 50.05 (Mercedes Benz) pinout diagram 1
1 of 3

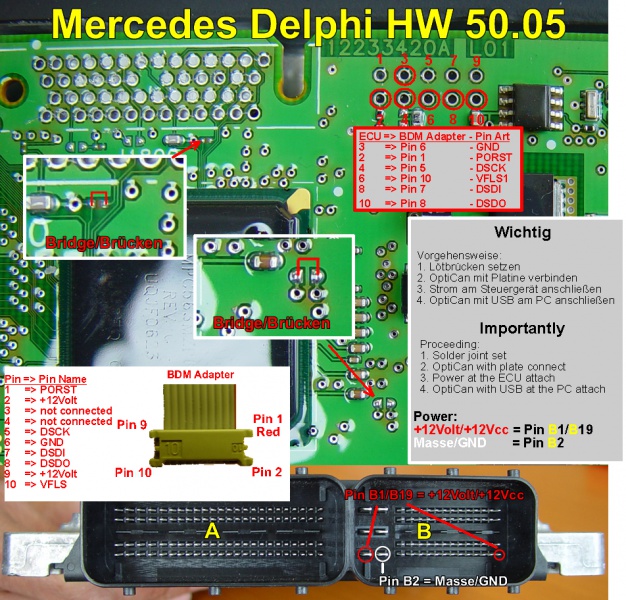

Delphi 50.05 (Mercedes Benz) pinout diagram 2
2 of 3

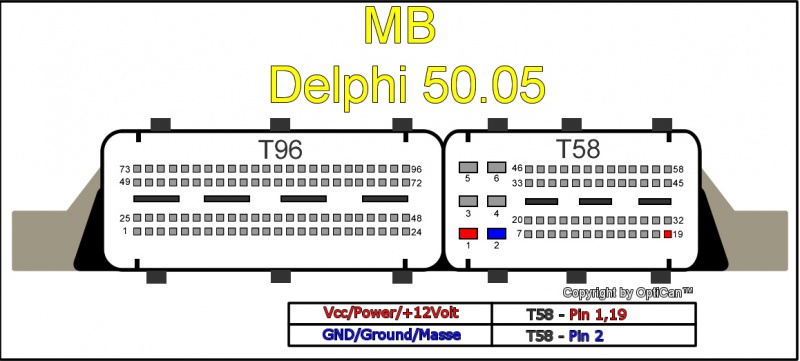

Delphi 50.05 (Mercedes Benz) pinout diagram 3
3 of 3
