Pinout Diagram

Bosch ME 9.7 4MB (AMG)

AMG ECU Pin Configuration

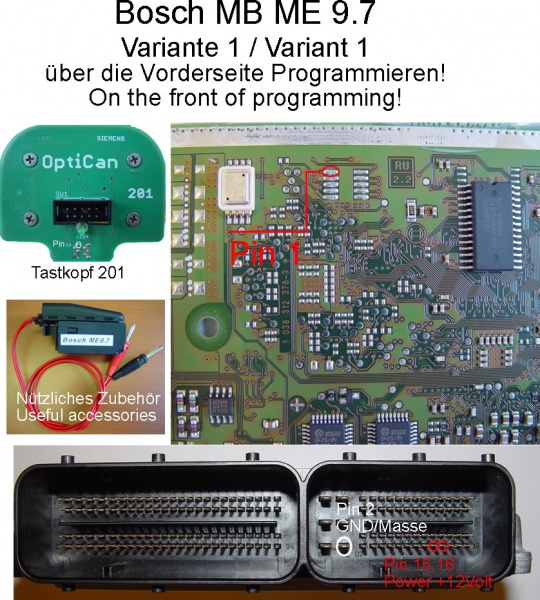

Bosch ME 9.7 4MB (AMG) pinout diagram 1
1 of 4
Bosch ME 9.7 4MB (AMG) pinout diagram 2
2 of 4

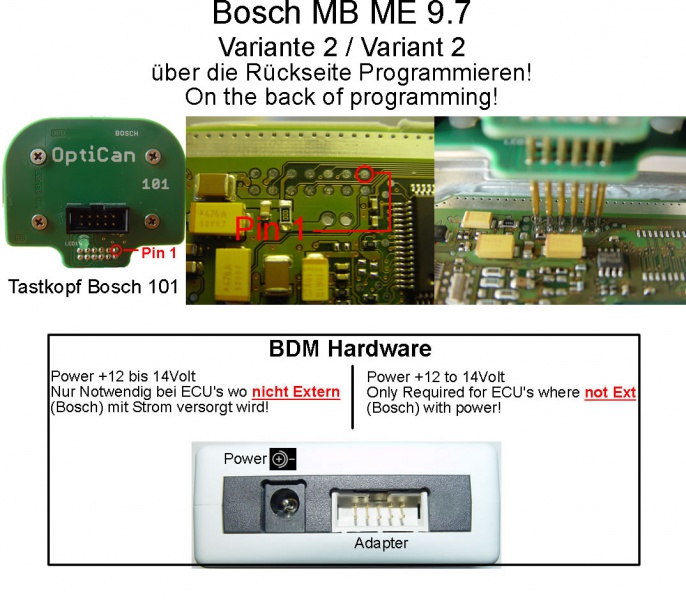

Bosch ME 9.7 4MB (AMG) pinout diagram 3
3 of 4

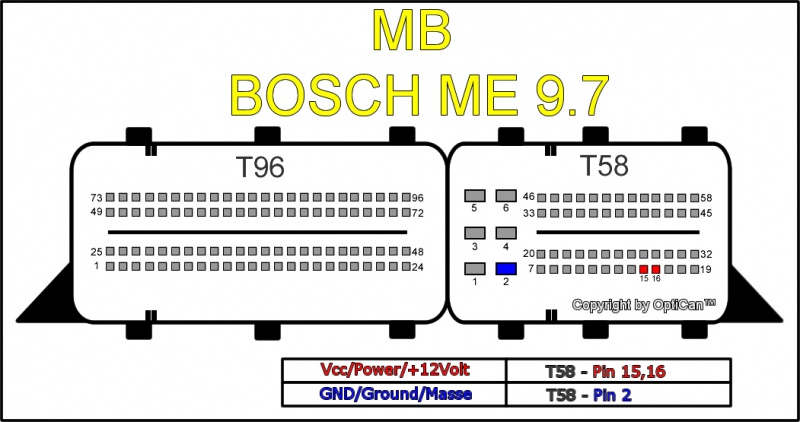

Bosch ME 9.7 4MB (AMG) pinout diagram 4
4 of 4
