Pinout Diagram

Bosch ME 9.7 2MB (AMG)

AMG ECU Pin Configuration

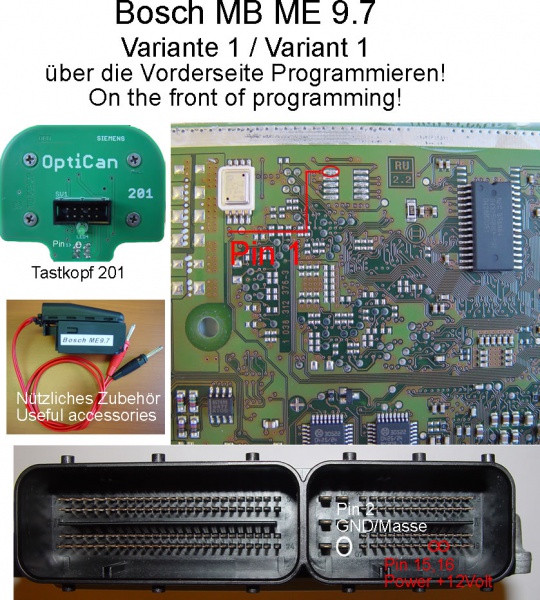

Bosch ME 9.7 2MB (AMG) pinout diagram 1
1 of 3

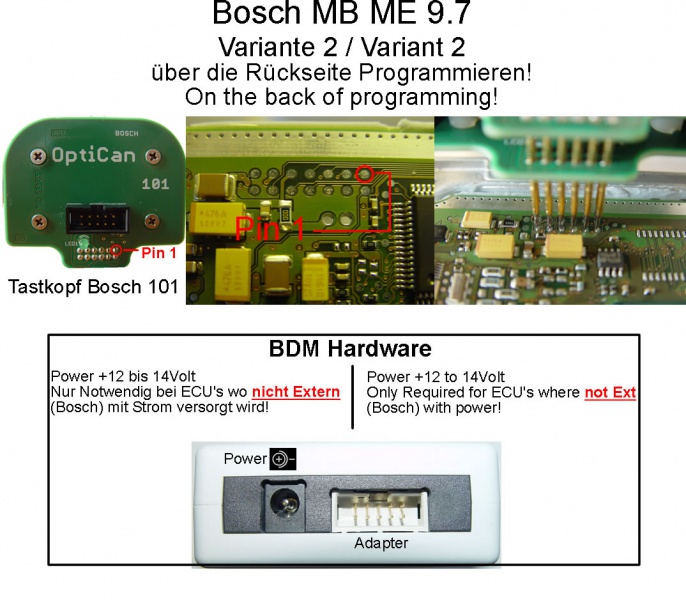

Bosch ME 9.7 2MB (AMG) pinout diagram 2
2 of 3

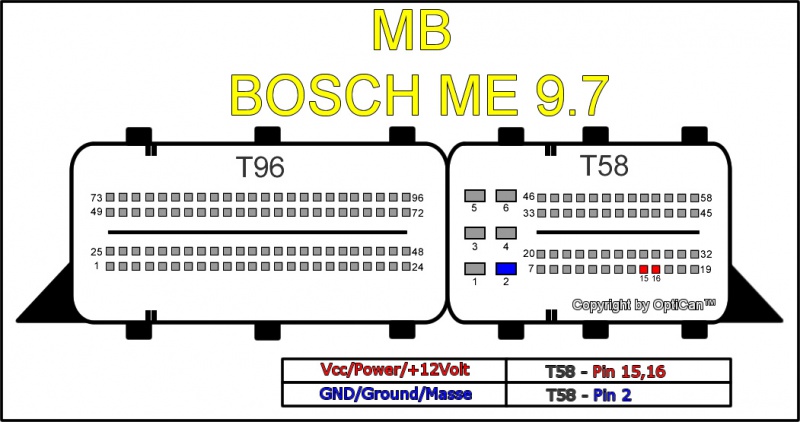

Bosch ME 9.7 2MB (AMG) pinout diagram 3
3 of 3
