Pinout Diagram

Bosch ME 7.1.1 (Porsche)

PORSCHE ECU Pin Configuration

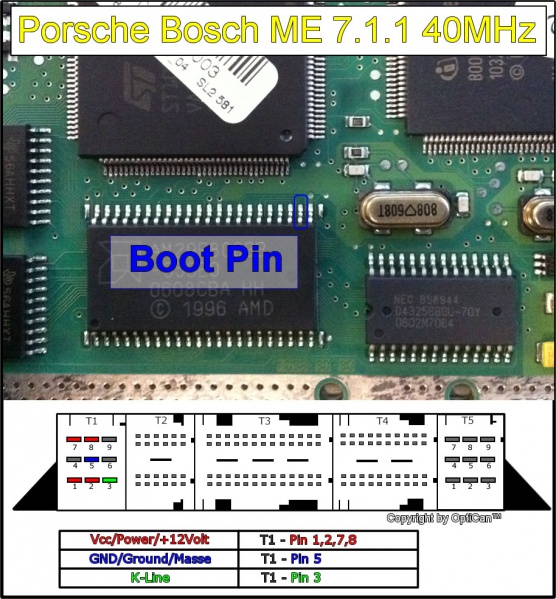

Bosch ME 7.1.1 (Porsche) pinout diagram 1
1 of 3

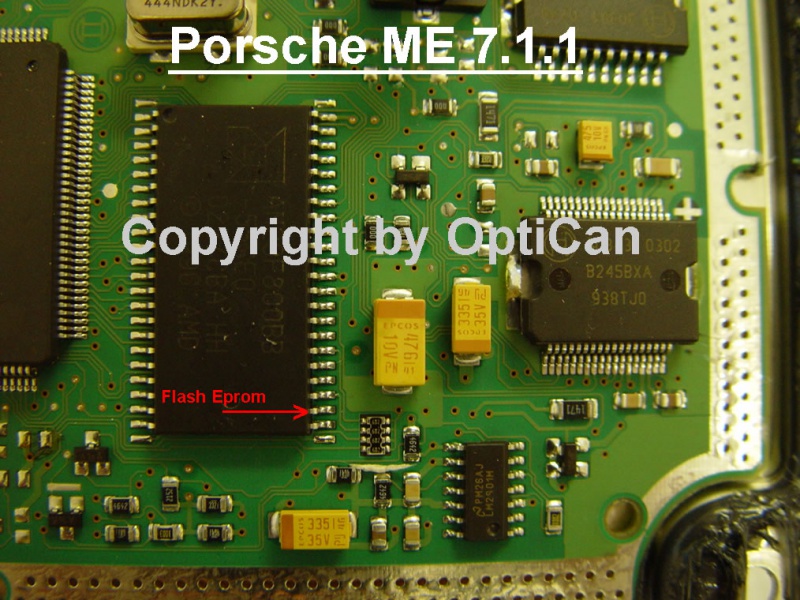

Bosch ME 7.1.1 (Porsche) pinout diagram 2
2 of 3

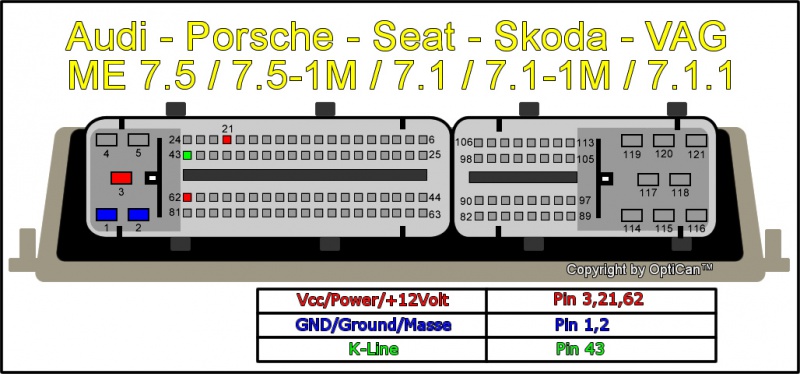

Bosch ME 7.1.1 (Porsche) pinout diagram 3
3 of 3
