Pinout Diagram

Bosch ME 7.0 (Volvo)

VOLVO ECU Pin Configuration

Bosch ME 7.0 (Volvo) pinout diagram 1
1 of 10
Bosch ME 7.0 (Volvo) pinout diagram 2
2 of 10
Bosch ME 7.0 (Volvo) pinout diagram 3
3 of 10
Bosch ME 7.0 (Volvo) pinout diagram 4
4 of 10

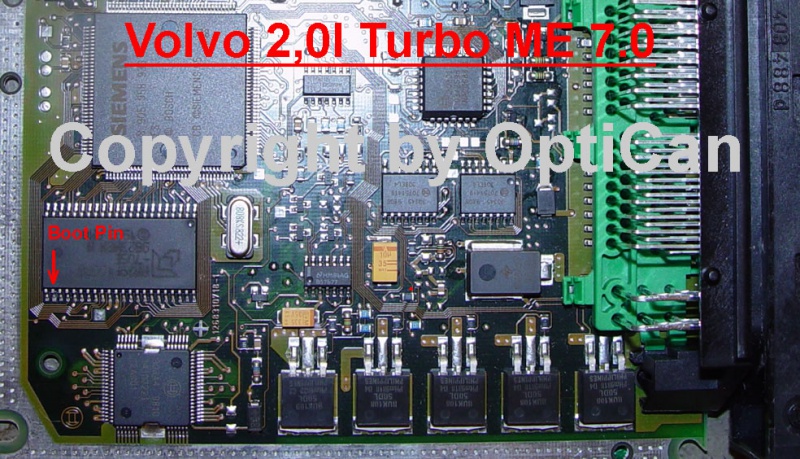

Bosch ME 7.0 (Volvo) pinout diagram 5
5 of 10

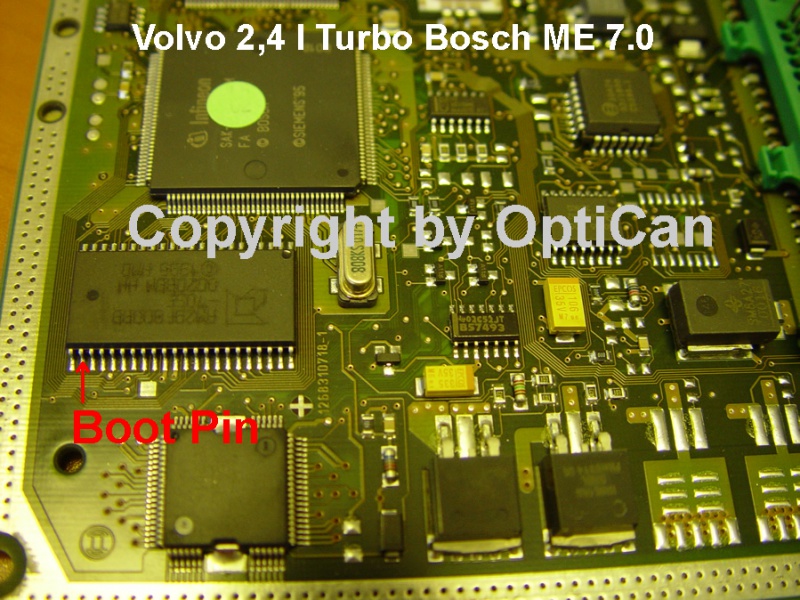

Bosch ME 7.0 (Volvo) pinout diagram 6
6 of 10

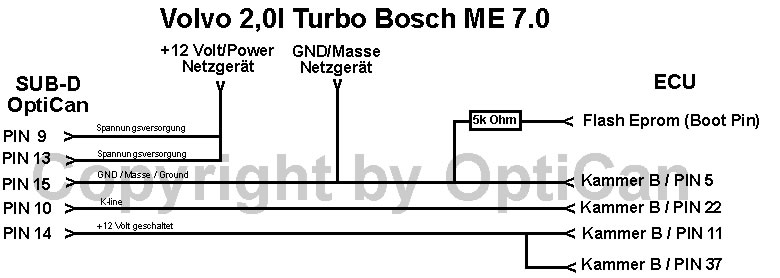

Bosch ME 7.0 (Volvo) pinout diagram 7
7 of 10

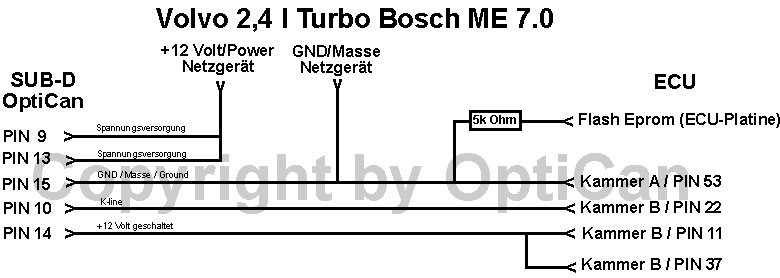

Bosch ME 7.0 (Volvo) pinout diagram 8
8 of 10

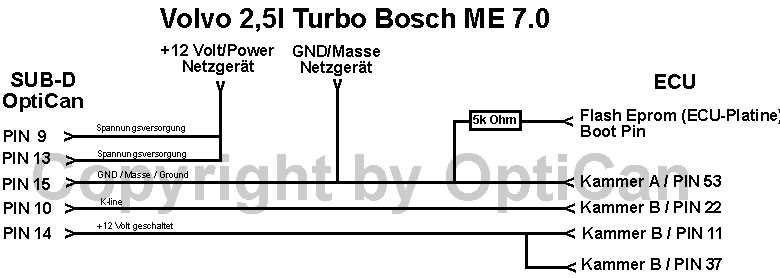

Bosch ME 7.0 (Volvo) pinout diagram 9
9 of 10

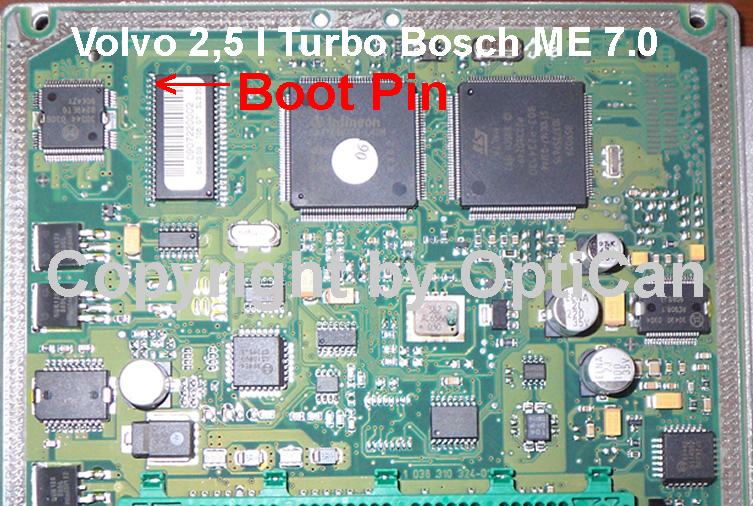

Bosch ME 7.0 (Volvo) pinout diagram 10
10 of 10
