Pinout Diagram

Bosch ME 2.8.1 (Mercedes Benz)

MERCEDES-BENZ ECU Pin Configuration

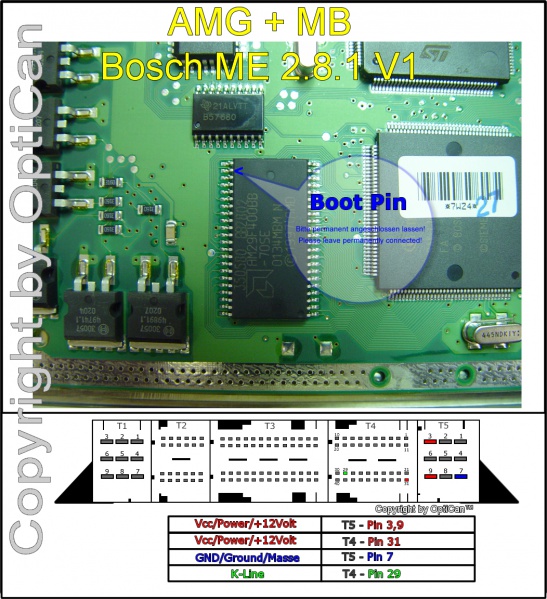

Bosch ME 2.8.1 (Mercedes Benz) pinout diagram 1
1 of 4

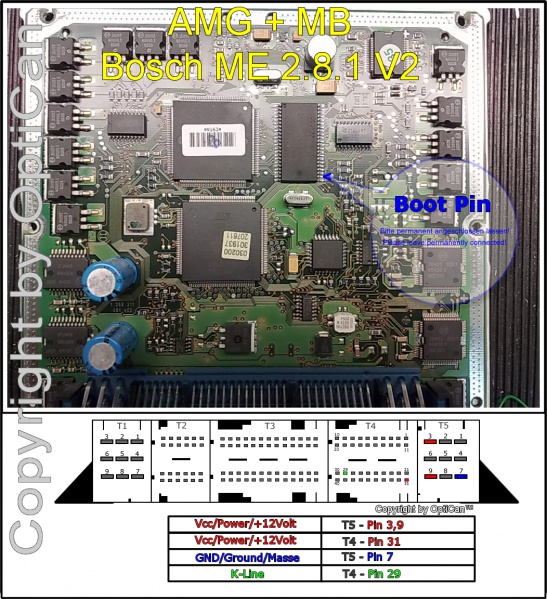

Bosch ME 2.8.1 (Mercedes Benz) pinout diagram 2
2 of 4

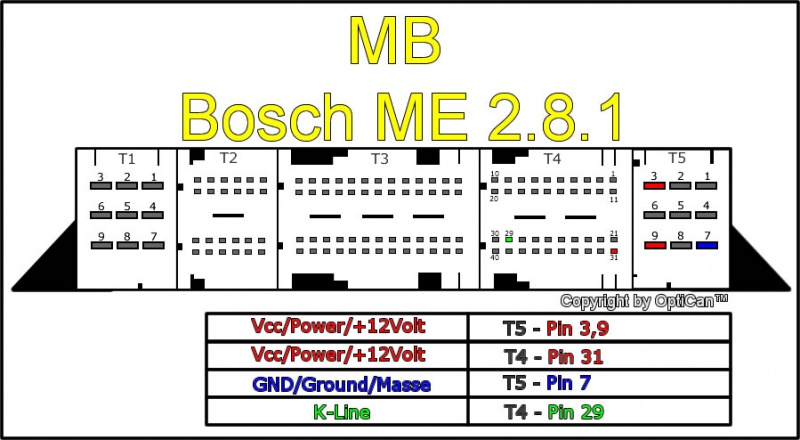

Bosch ME 2.8.1 (Mercedes Benz) pinout diagram 3
3 of 4
Bosch ME 2.8.1 (Mercedes Benz) pinout diagram 4
4 of 4
